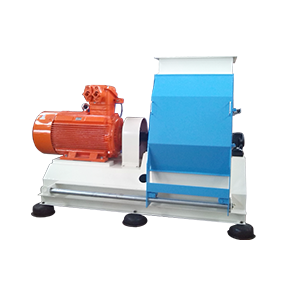

JFS-2000MG Serial Hammer Mill

Application and Feature

JFS-2000 serial water drip type hammer mill adopts “Water Drip” structure. It is suitable for crushing many materials such as maize, dried potato, bean cake, sorghum, soybean, conch and stem, which is widely used in the ethanol, grain, feedstuff, citric acid, starch and other industries.

● It is meticulously developed by adopting international advanced technology and Wulong’s hammer mill manufacture technology essence for more than two decades.

● The drop-shaped crushing chamber design in real sense.

● The positioning shaft is used to fully optimize the arrangement of hammers. The operation of replacing hammers is simple.

● Adopt various precision detection including high precision dynamic balancing, to make sure it runs more smoothly, with lower noise and more ideal performance.

● Imported parts for key positions makes the service life longer and lowers maintenance costs.

Main specifications and technical parameters

Item and Parameters		JFS2000-53MG	JFS2000-63MG	JFS2000-72MG	JFS2000-83MG	JFS2000-88MG
Rotor diameter（mm）		1142	1142	1142	1142	1142
Width of crusher chamber (mm)		530	630	720	830	880
Spindle speed (r/min)		1480	1480	1480	1480	1480
Driving type		Coupling drive	Coupling drive	Coupling drive	Coupling drive	Coupling drive
Hammer quantity (pieces)		72	72~132	108~180	144~216	180~252
Motor power (Kw)		55~90	90~132	110~160	160~220	200~250
Capacity （T/h）	Cassava	9~15	15～20	18～25	20～28	23~30
Capacity （T/h）	Maize	6~10	10～16	14～18	18～23	20~25
Reference weight (kg)		2300	3500	3800	4500	5200
Outline dimension (mm)		2265×1615×1905	2370×1615×1905	2650×1615×1905	2750×1615×1905	2814×1615×1905
