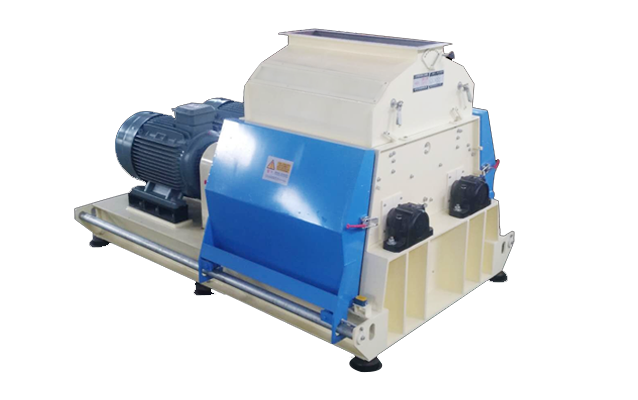

WFSS65 Serial Dual Rotors Hammer Mill

Power consumption of crushing

one ton of corn is 8-10 KWH

Scope of application

WFSS65 serial dual rotors hammer mill, especially suitable for crushing feedstock such as corn, sorghum, wheat, energy saving 20-25% compared to the similar kind of crusher. It is widely used in alcohol, grain, feed, citric acid, food, cellulose and other industries.

Performance features

● The two rotors rotate in the same direction at a high speed, and the double linear velocity improves the impact velocity between feedstock and hammers, thereby, improving the crushing efficiency greatly.

● A guide plate is arranged in the middle of the rotor to destroy the circulation layer in the crushing chamber and increase the impact probability of materials.

● "Double water drop" screen structure, increases the effective sieving area by 20%, compared with the single rotor hammer mill of same power, its capacity is increased by 20-25%.

Main specifications and technical parameters

Item and type	WFSS65-65	WFSS65-75	WFSS65-85	WFSS65-100
Rotor working diameter (mm)	650
Width of crushing room (mm)	650	750	850	1000
Spindle speed (r/min)	2970
Transmission type	Coupling drive
Quantity of hammers (pieces)	（36-48）×2	（48-64）×2	（48-64）×2	80×2
Motor power (Kw)	45/55×2	55/75×2	75/90×2	90/110x2
Yield: corn with sieve pore of φ2.0mm	12-13.5t/h	13.5-18t/h	18-20t/h	20-25t/h
Dimensions: length × width × height (mm)	2235×1830×1610	2335×1830×1610	2435×1830×1610	2900×1830×1610
