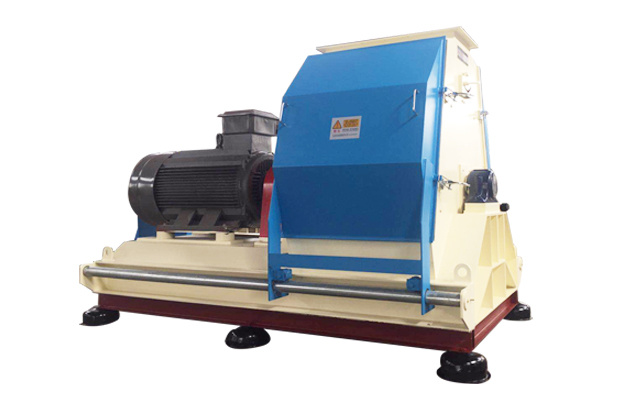

WL Water Drip Serial Hammer Mill

Application and Feature

Efficiency comes from specialty, with Wulong’s hammer mill manufacture technology essence for more than two decades, the genuine water drip and the "W" shape secondary crushing structure, reduce the energy consumption ratio greatly.

● It is meticulously developed by adopting international advanced technology and Wulong’s hammer mill manufacture technology essence for more than two decades.

● The water drip-shaped crushing chamber design in real sense, and the "W" shape secondary crushing structure increase its output by 20%.

● Using the locating pin shaft to optimize the arrangement of hammers.

● Adopt various precision detection including high precision dynamic balancing, to make sure it runs more smoothly, with lower noise and more ideal performance.

● Key parts are imported so that their service life is longer and maintenance cost is low.

● The movable and fully operation open door and the linkage type press screen device, make the operation be more humanized and more convenient.

● It is widely used in large and medium-sized ethanol plant for crushing raw materials, as well as in the beverage factory, citric acid factory, food factory, etc.

Main specifications and technical parameters

Type	WL-48	WL-68	WL-78	WL-88	WL-968
Spindle speed (r/min)	1480
Rotor diameter（mm）	1300
Hammer quantity (pieces)	72	120	144	168	144-192
Reference weight (kg)	2810~3250	3640~3800	3940~4100	4230~4400	4950~5400
Motor power(Kw)	70/90/110	110/132/160	110/132/160	200/220/250	250/315/350
Capacity（t/h）	12-18	15-22	18-25	22-28	24-32
