TQLM Serial Rotary Flat Sieve

Page view:
产品名称

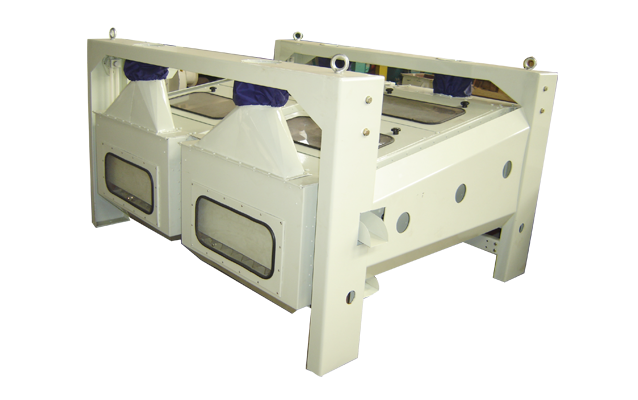

TQLM Serial Rotary Flat Sieve

Outline dimension
编号
Affiliate classification
Quantity
-
+
没有此类产品
Detail
Product parameters

Application and Feature


● TQLM serial rotary flat sieve is a kind of equipment for classifying large, small and light impurities in the particle materials.



● It mainly consists of feeding box, rack, screen support, transmission, air suction separating cover.



● The machine is a kind of cleaning equipment with various trajectories that combines sorting with sieving, of which sieving plays a dominant role..Taking advantage of  the difference of particle size in food and impurities, appropriate sieve plate is configured, The purpose of separation is achieved by rotating and reciprocating motion of the sieve vessel, at the same time, taking advantage of  the difference of suspension speed, to remove impurities through air suction separating cover.





Main specifications and technical parameters


Items and type

Unit

TQLM100

TQLM125

TQLM150

TQLM200

Capacity

t/h

20

6.4

25

8

30

9.5

40

12

Screen nominal width

mm

1000

1250

1500

1000×2

Screen leaning angle

°

7.5°

Speed

r/min

300,400,500 (three levels adjustable)

300

Power

kw

0.75

1.1

Air volume of air
suction separating cover

m3/min

45

55

65

90

Air volume of feeding
box for light impurities

m3/min

20

25

30

40

Weight

kg

700

800

900

1400

Outline dimension

mm

2150×1400×1460

2150×1650×1460

2150×1900×1780

2150×2500×1500



Corresponding parameter set not found, please add it in property template of background
