产品名称

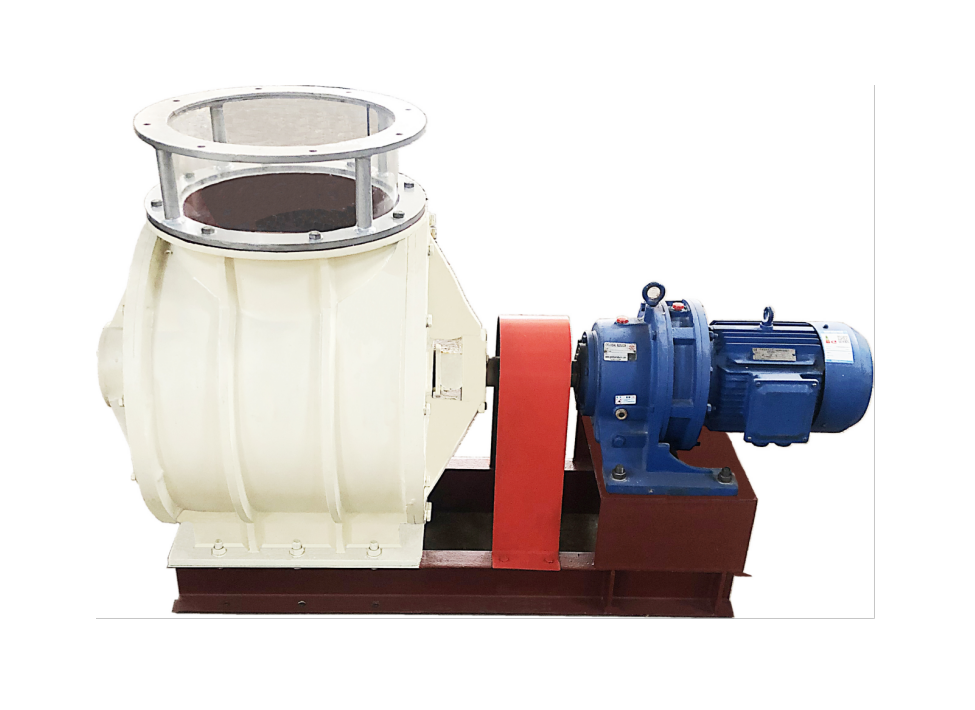

GF Serial Air Lock

ApplicationandFeatureTheimpellertypefanisanindispensableequipmentinthedustremovalandpneumaticconveyingsystemofgrain,oilandfeedprocessing,pharmaceutical,brewing,millingandalcoholrawmaterialcrushing.The
编号
Affiliate classification
Quantity
-
+
没有此类产品
Detail
Product parameters

Application and Feature


Impeller air lock is an indispensable equipment of dust removal and pneumatic conveying system in the grain and oil feed processing, pharmaceutical, brewing, powder process and ethanol raw material milling, and other industries. Impeller air closer is generally installed at the pipeline end of the pneumatic conveying system, for feeding or discharging. It relies on the rotating impeller to transport materials and cut off the connection between the pneumatic system and the outside  world while playing its sealing role to ensure the normal operation of the system. It is also widely used in the system that needs to ensure the uniform feeding of powdery materials or materials containing small and medium particles while playing its homogenizing role. This series of air locks are designed in accordance with the unified standard by absorbing the advanced technology at home and abroad.





Main specifications and technical parameters



Type

GFZ-5

GFZ-8

GFZ-16

GFZ-24

GFZ-45

GFY-56

GFY-95

Volume

5

8

16

24

45

56

95

Power

0.75

1.1

1.5

2.2

3

3

4



Corresponding parameter set not found, please add it in property template of background
