LW Serial Decanter Centrifuge

• Good adaptation. This machine is designed to take full consideration of various special requirements to the centrifuge for the chemical waste liquid, optimization design for the main features with specificity and adjustability, etc. As long as the user states its installation and working site, material physicochemical property and technological requirements for the centrifuge before ordering, we will suggest and provide users with suitable models.

• High automation degree. The machine’s feeding, separation, discharge and other processes are for automatically continuous operation at full speed which could be communicated with the microcomputer directly, to realize process automation control.

• Good operation environment. This machine is for the separation of materials under conditions of complete closure, the operator on-site is without any pollution, to maintain the production environment neat and clean.

• Strong corrosion resistance. The machine's drum, spiral, main case and other parts in contact with the materials utilize the high quality stainless steel, with high acid-resistant and alkali-resistant capabilities. Also other materials could be used as per users’ requirements.

• Good wear properties. According to users’ requirements, the spiral vane of this machine adopts the advanced wear-resisting technology such as surfacing hard alloy or inset hard alloy plates, improving the service life of the helix greatly.

• Good process response. Using frequency conversion technology, the smooth start of the main engine is realized, stepless adjustment of speed and dynamic intelligent control, which can be adapted to the process fluctuation automatically. If there is a need for the user, it also can realize the constant torque control.

• Good running stability. This machine adopts the involute planetary gear differential, a unique low oil running technique of our factory. Low operating temperature, big transmission torque and reliable performance. Main bearing of the drum adopts oil circulation lubrication, which can effectively improve its running speed and adapt to the high temperature working condition.

• The main motor could be configured with ordinary type, speed variable type or explosion-proof type, users could choose their own suitable types.

• Low energy consumption. The machine adopts advanced frequency conversion govern technology, minimize the impact on the grid, and its energy consumption is just 1/3 to 1/2 of the same kind product.

• Smooth running. With the parts precision dynamic balancing and the whole machine’s working dynamic balancing, the standard of the vibration intensity of horizontal decanter centrifuge defined by the factory is just 5 mm/s below, which is far below the regulation 7.1 mm/s of JB/T 502-2004 " Technology conditions of spiral decanter centrifuge ".

• Low noise. The noise sound pressure level is below than 85 db (A), which is below than the regulation 90dB(A) of JB/T 502-2004 " Technology conditions of decanter centrifuge ".

• Complete and reliable safety device. The machine is equipped with multiple protections such as torque protection, power control, electric interlocking, sound and light alarm, which can effectively remove or reduce the damage caused by sudden failures.

Main specifications and technical parameters

Code	Type	Main technical parameters					Motor power		Outline dimension	Weight of main unit
Code	Type	Drum Dia	Length	Max. speed	Biggest separation factor	Capacity	Main motor	Auxiliary motor	Outline dimension	Weight of main unit
LW350A	LW350×1120	350	1120	3600	2540	3-18	18.5/22	5.5	3161×950 ×1090	1950
LW350B	LW350×1300	350	1300	4200	3454	3-18	18.5/22	5.5	3341×950 ×1090	2100
LW350W	LW350×1470	350	1470	3200	2007	3-18	15/18.5	4/5.5	3511×950 ×1090	2200
LW430B	LW430×1650	430	1650	3200	2466	5-25	30/37	5.5/7.5	4010×1030 ×1290	3400
LW430G	LW430×1520	430	1500	3600	3118	5-32	37	7.5	3900×1030 ×1290	3300
LW430W	LW430×1790	430	1790	2500	1505	5-28	22/30	5.5/7.5	4130×1030 ×1290	3400
LW550B	LW550×1950	550	1950	3200	3154	10-35	45/55	11/15	3460×1800 ×1120	4300
LW550W	LW550×2200	550	2200	3200	3154	12-40	45/55	11/15	3710×1800 ×1120	5000
LW650B	LW650×2300	650	2300	2650	2554	15-50	75/90	15/22	4200×2300 ×1400	7000
LW720B	LW720×2300	720	2300	2300	2130	20-60	110/132	30/37	4200×2400 ×1550	8000
LW720W	LW720×2500	720	2500	2300	2130	20-70	110/132	30/37	4400×2400 ×1550	8600

Work Site


The spiral blade of the decanter centrifuge and the wear parts such as the inlet and outlet Protected from wear-resistant tungsten carbide, carbide blocks or ceramic sheets		The spiral blades of the decanter centrifuge and the wear parts such as the inlet and outlet are protected by wear-resistant tungsten carbide, hard alloy blocks or ceramic sheets.


Precise balance to ensure smooth operation		Workshop corner


Workshop corner		Workshop corner


Application of LW430W Horizontal Screw Centrifuge in Treatment of Distillers Wastewater in Jiangsu Huadun Wine Co., Ltd.		Live photo


Live photo		Flocculant manual preparation system

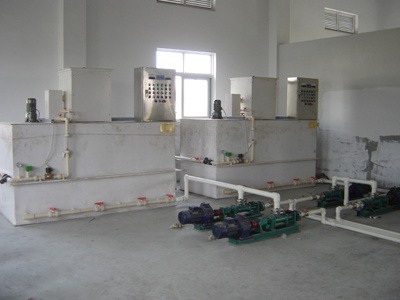

Flocculant automatic configuration system
